DPAR Series Round cylinder (Stainless steel)

Inside diameter: 20, 25, 32, 40

Product characteristics • Oil-free: oil-containing alloy, special bearing bushing, so that the piston rod does not need to oil
• High strength, strong chemical resistance: full high resistance stainless steel. Can be matched with adjustable buffer, dual shaft and other types
• Standardized design: most parts can be interchangeable with the international standard ISO 6432 specifications
• Diversified support: a variety of fixed and non-fixed support for customers to choose
• All series are attached magnetic

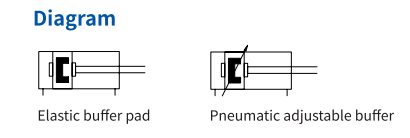

Functional symbol

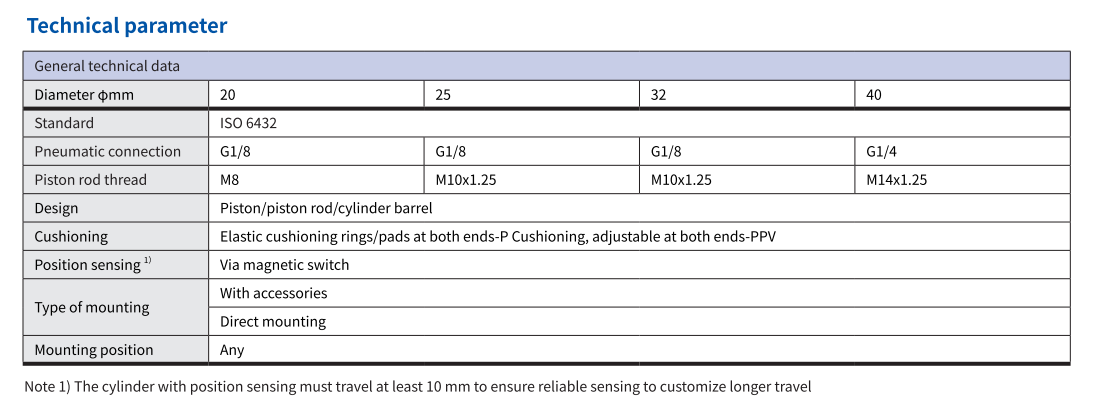

Product specification

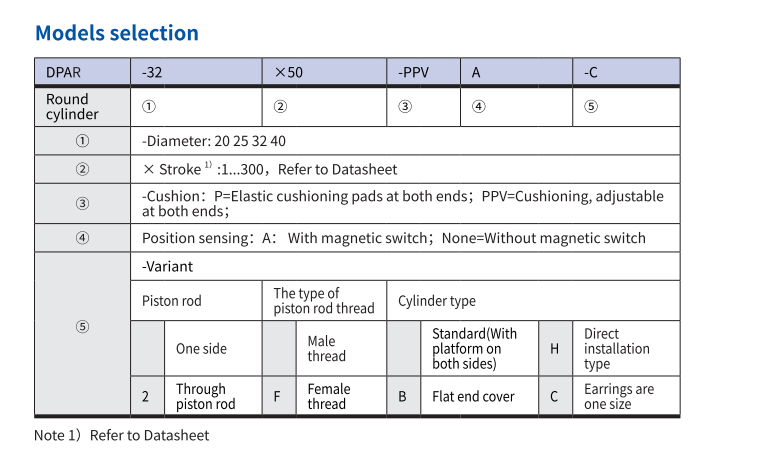

Order code
Installation and use
